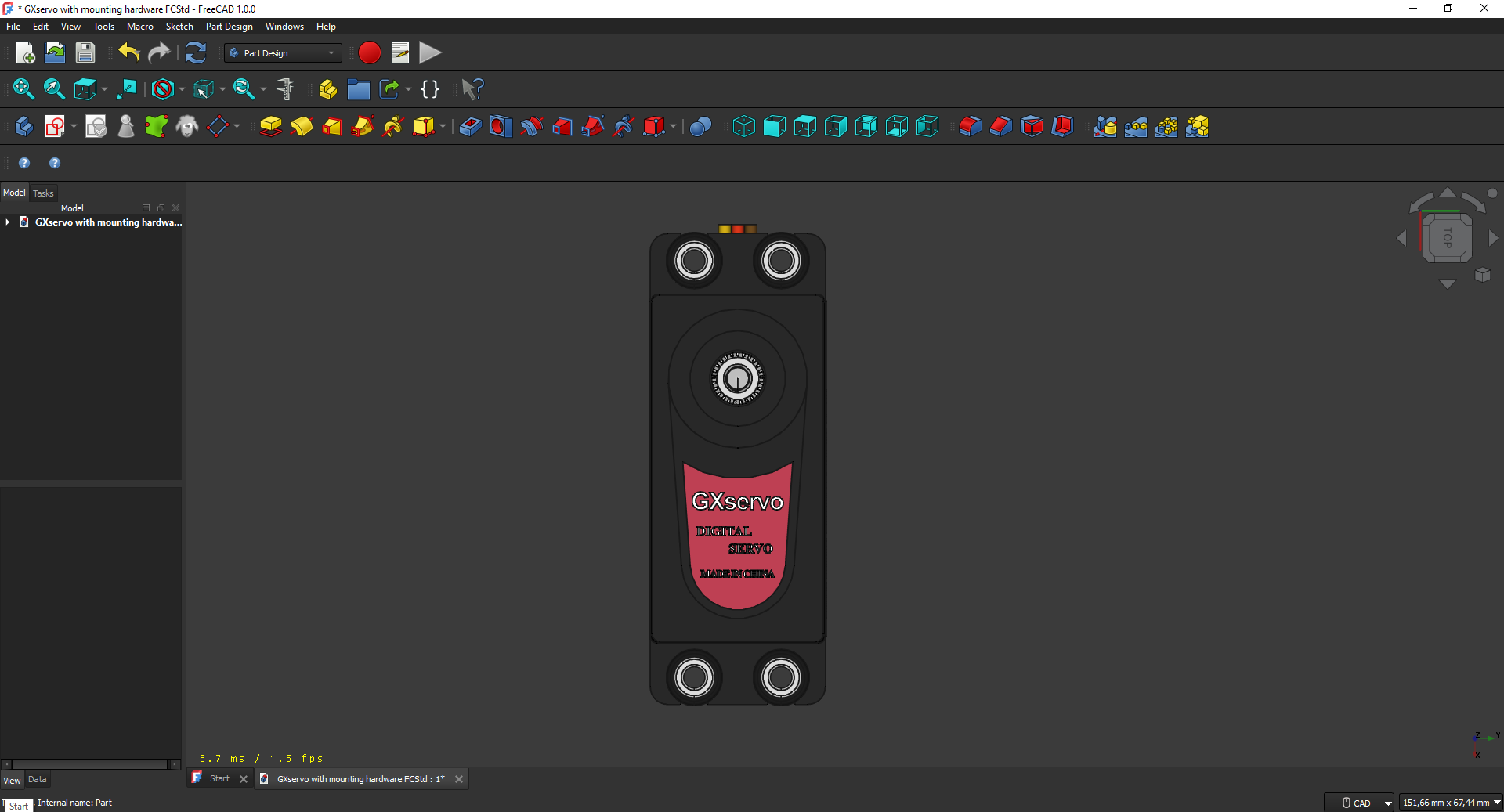

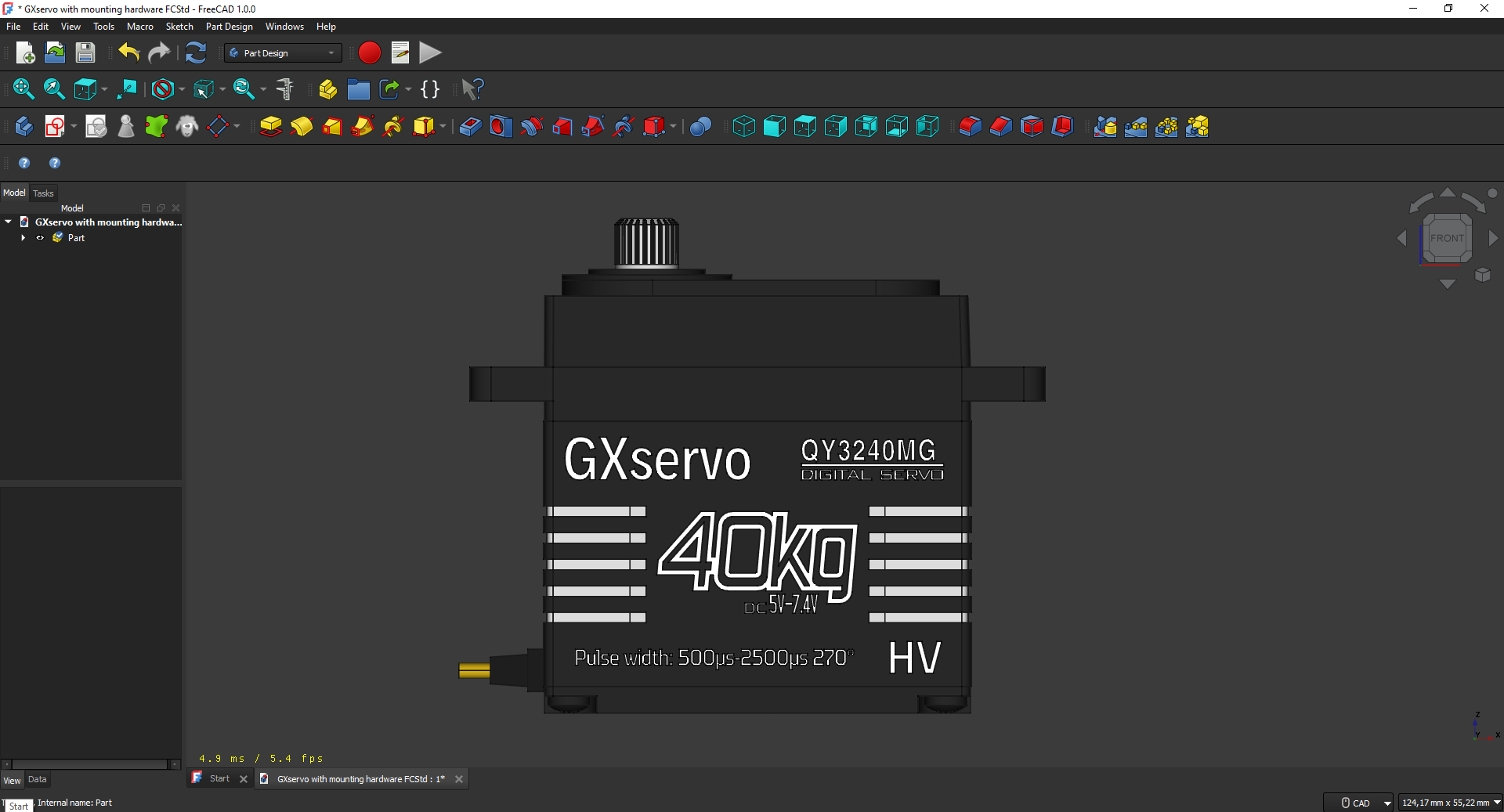

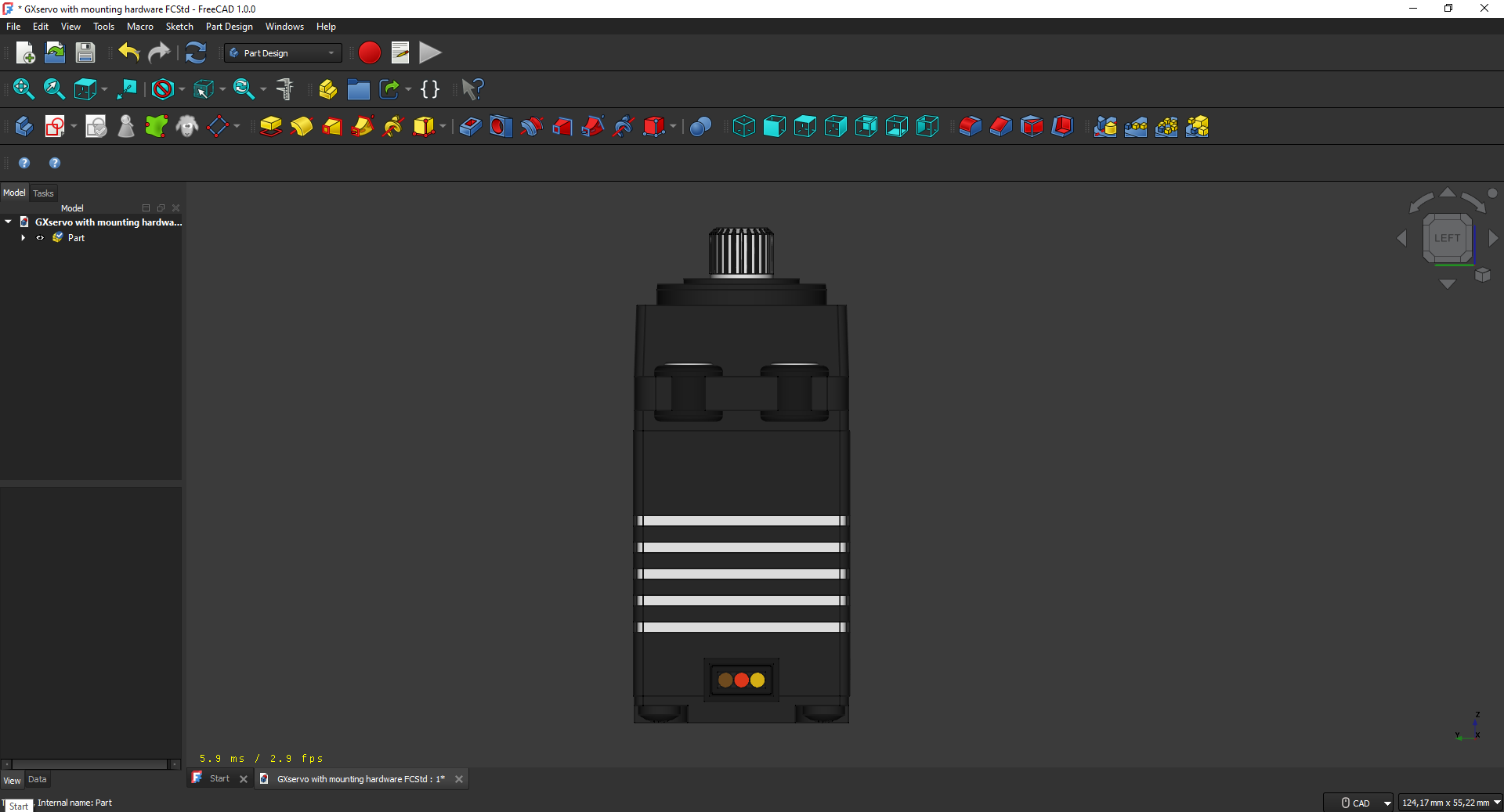

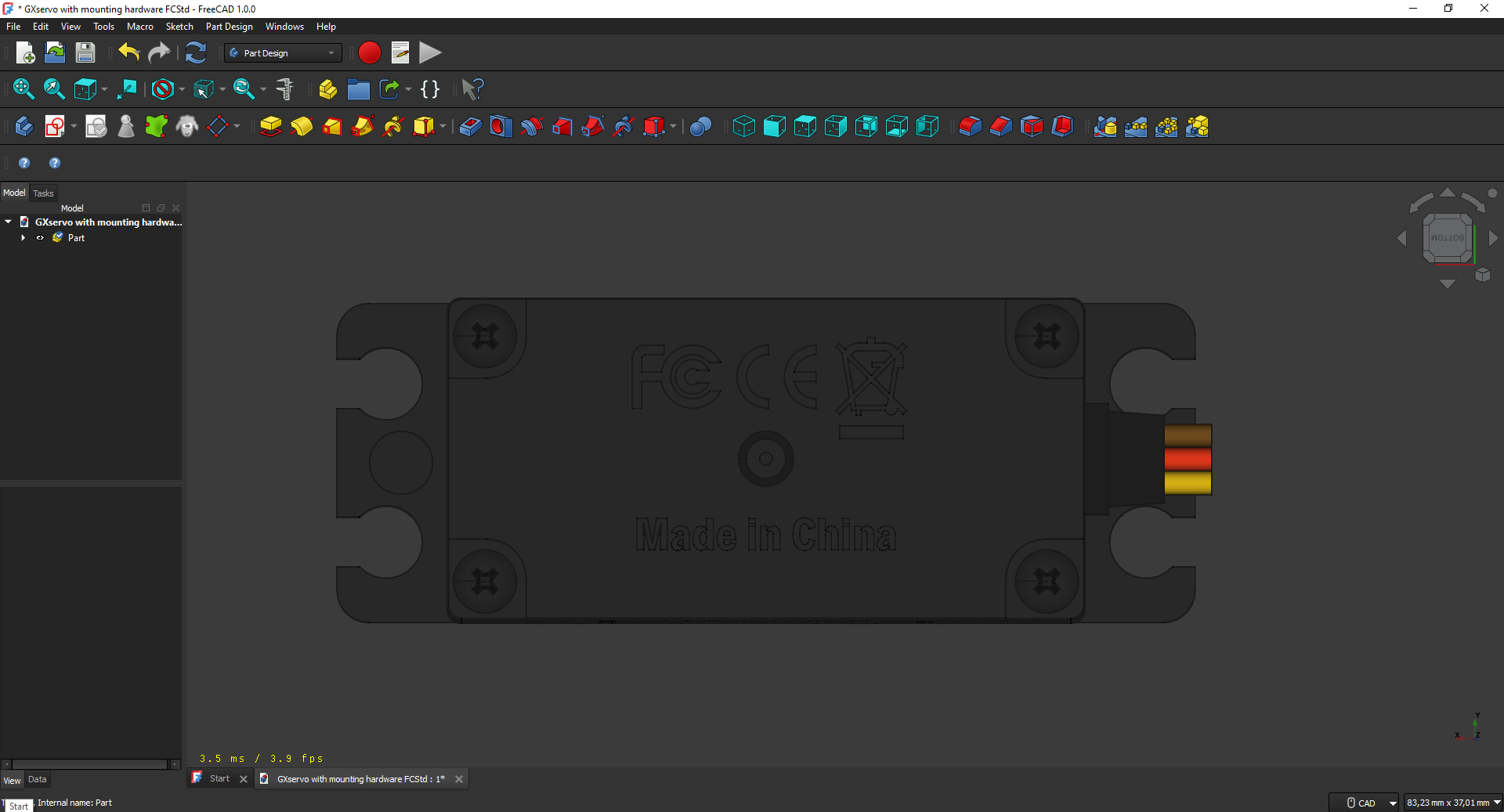

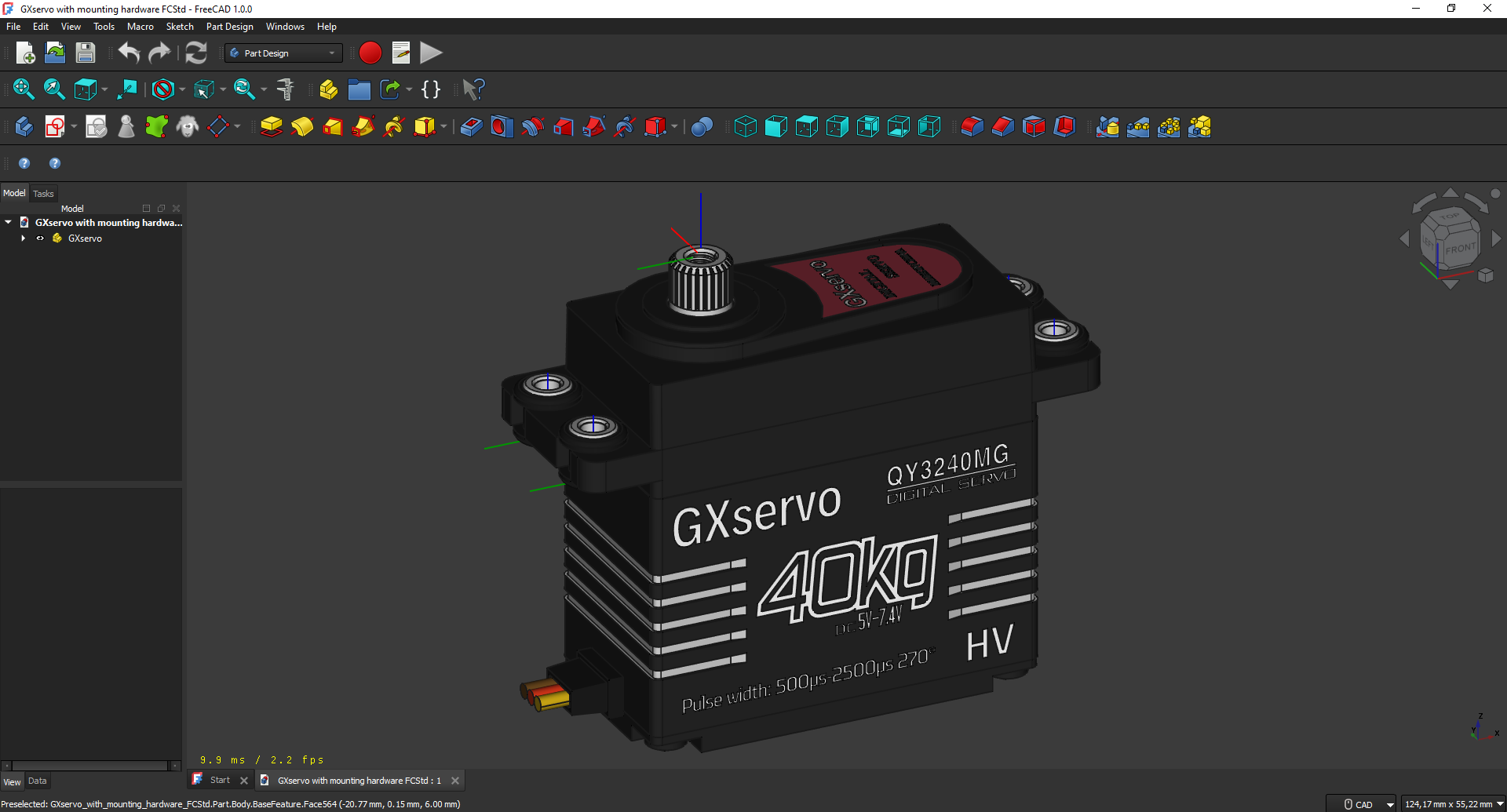

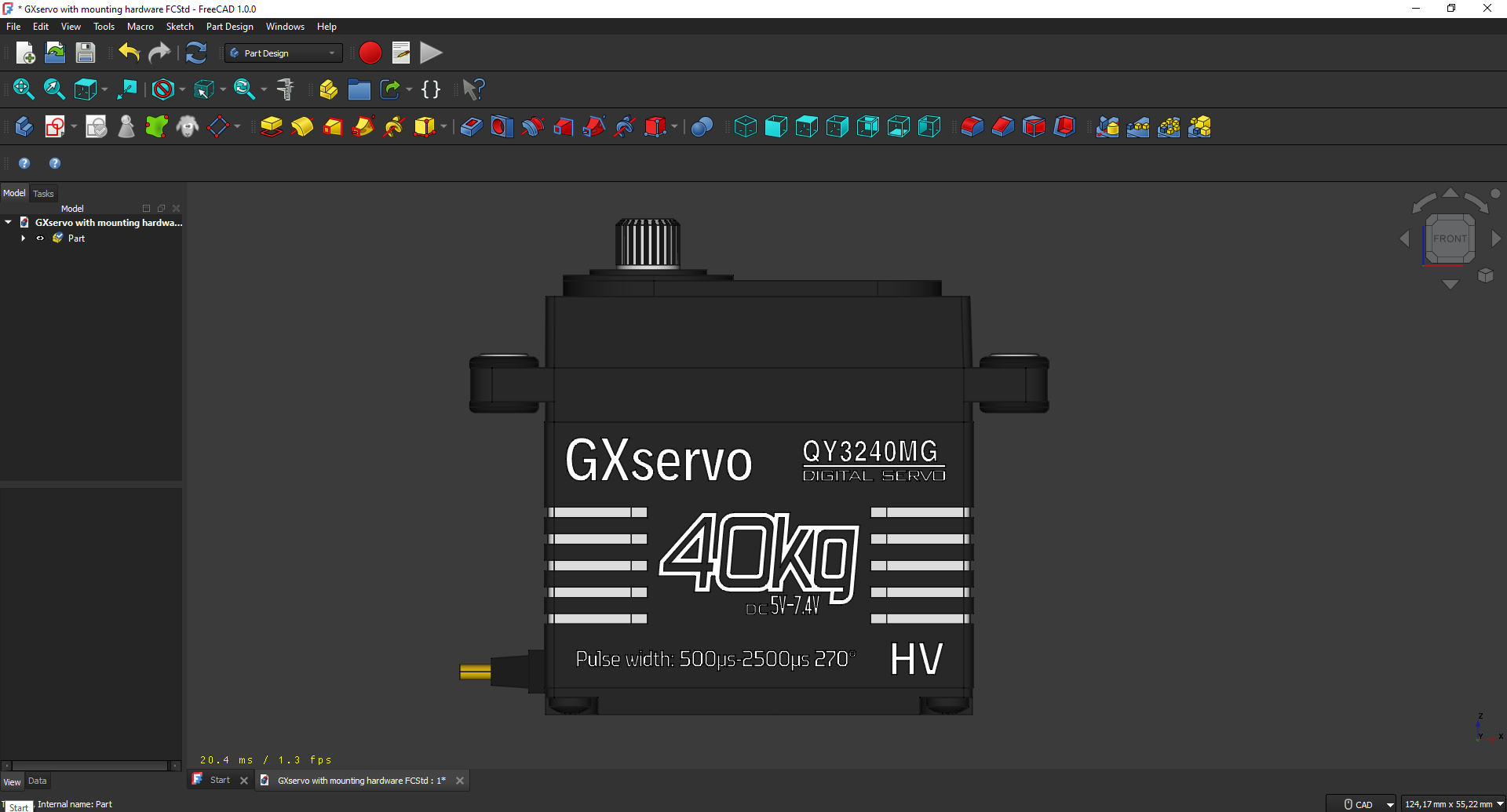

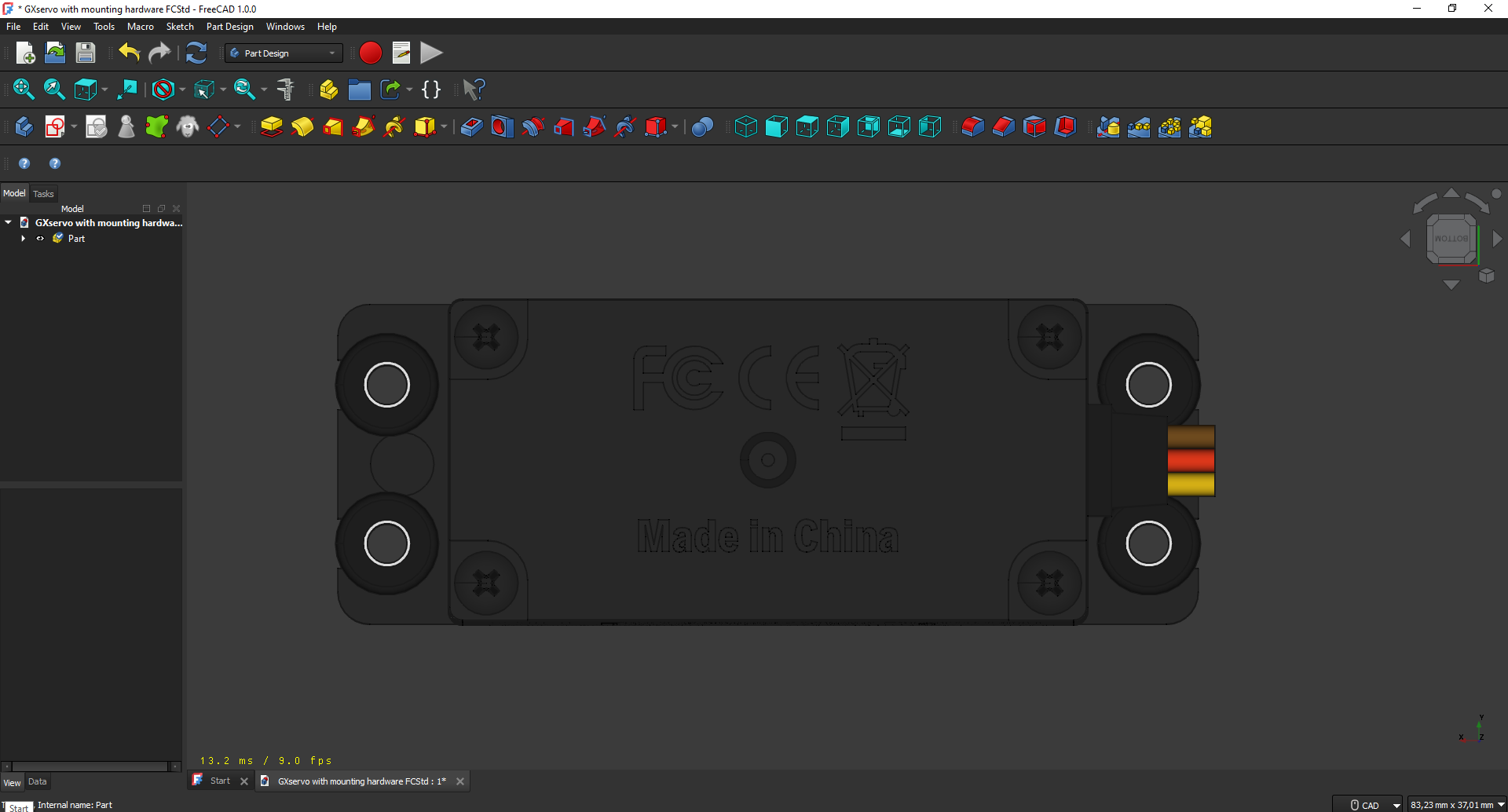

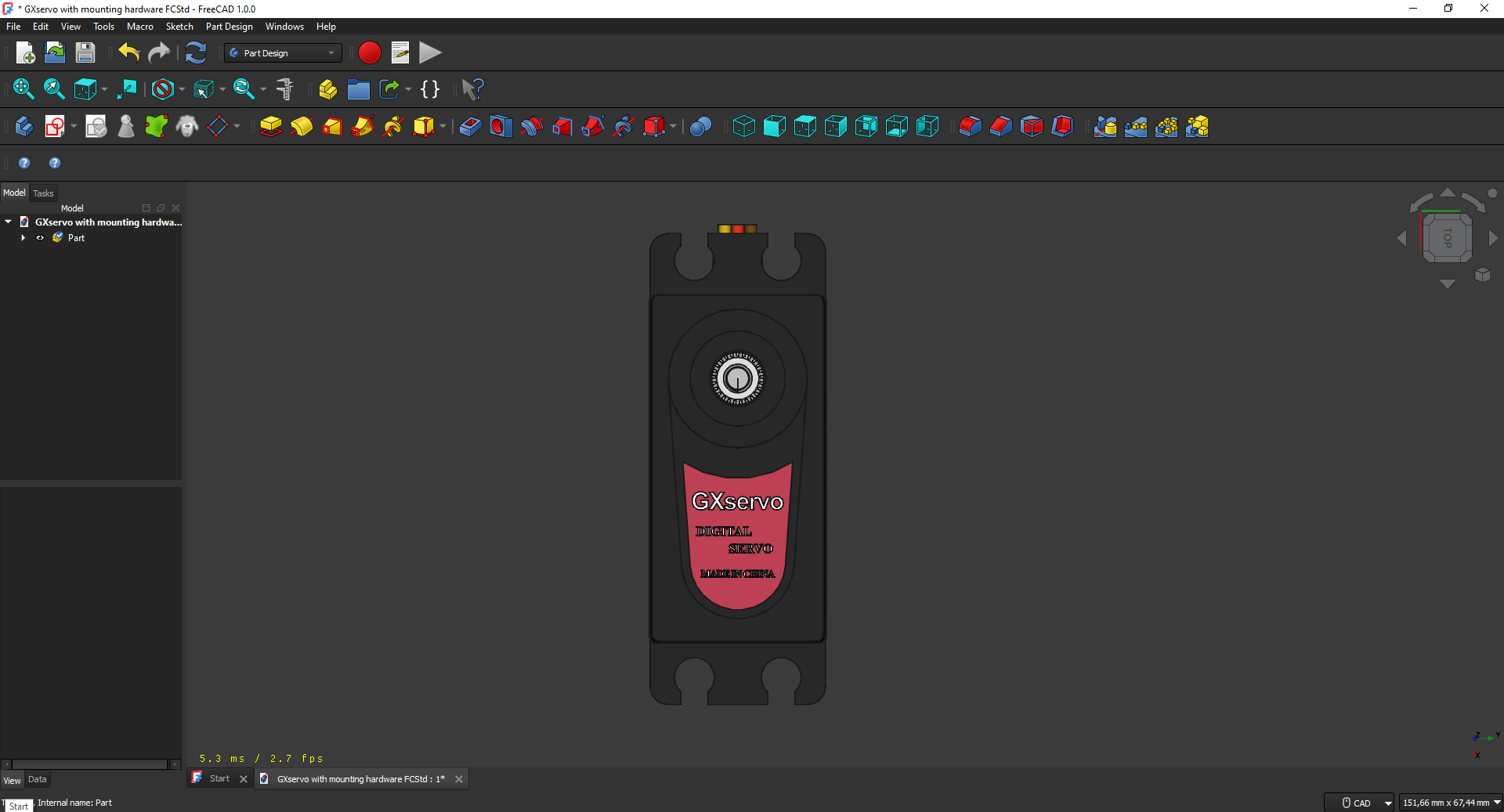

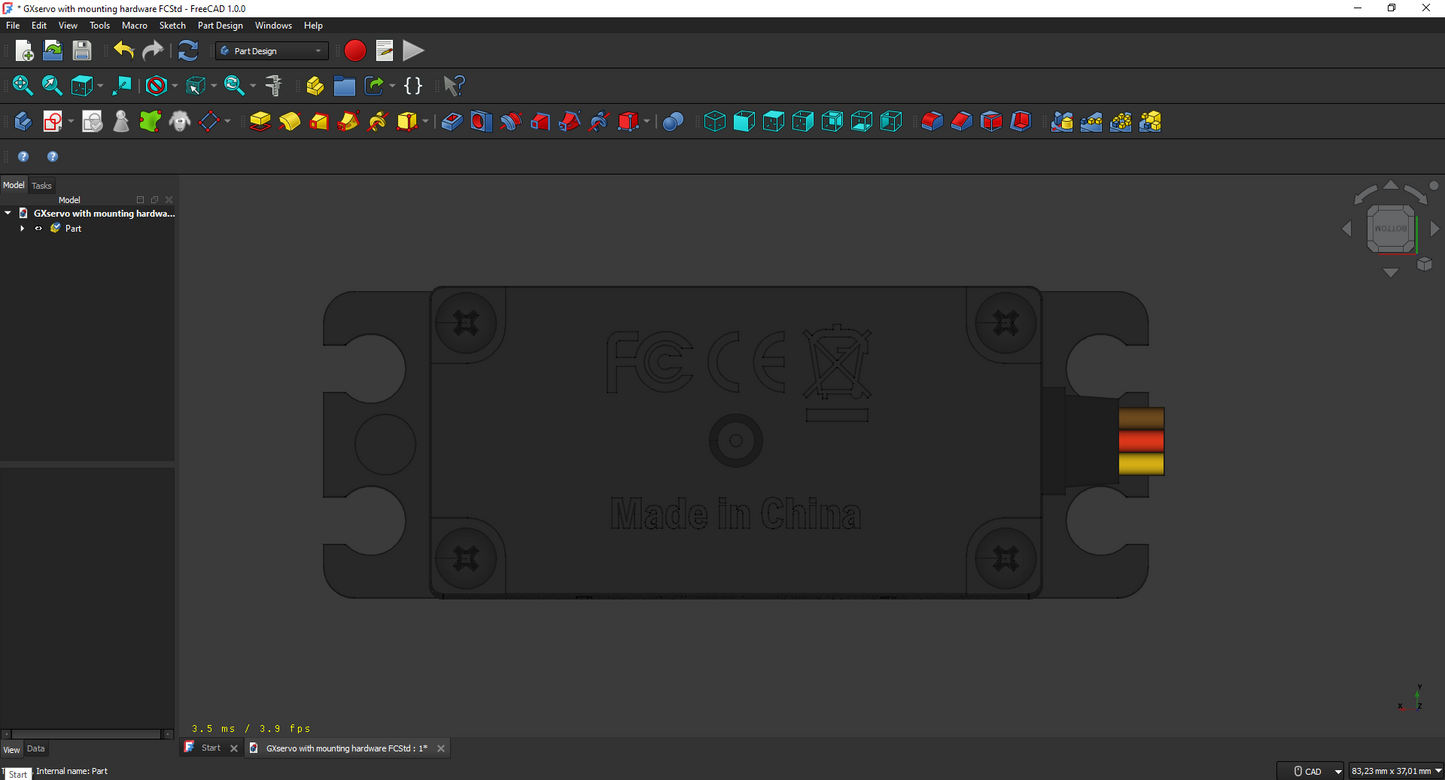

GX Servo – Precision 3D CAD Model for Fitment Testing
Description: This dimensionally accurate 3D CAD model of the GX Servo is designed for precise fitment and mechanical integration testing in robotics, automation systems, and custom engineering projects. Created with engineering precision, it enables designers, engineers, and hobbyists to validate servo placement before committing to physical builds or production.
Key Features:
Engineering-grade accuracy – Dimensions verified against reference specifications and real-world measurements (tolerance <0.2 mm).
Optimized for fitment testing – Perfect for enclosure design, bracket fabrication, and mechanical assembly verification.
Multiple formats included – .FCStd, .gltf, .STEP, .IGES, .STL, .OBJ (Wavefront) for maximum CAD compatibility.
Cross-platform tested – Compatible with FreeCAD, Fusion 360, SolidWorks, and other major CAD programs.
Clean geometry – Efficient modeling for smooth performance in assemblies, even in complex designs.
Format & Feature Availability:
Local Coordinate System (LCS): Available in .FCStd and .gltf formats only.
Colors: Available in .FCStd and .STEP formats only.
Transparency: Available in .FCStd format only.
Best Visual Quality: Model looks best in .FCStd format due to full material, color, and transparency support.
Applications: ✔ Robotics and automation projects ✔ RC vehicles and hobbyist designs ✔ Mechanical integration and bracket testing ✔ Visual presentations and documentation
Package Includes:
GX Servo CAD model in .FCStd, .gltf, .STEP, .IGES, .STL, .OBJ formats
README file with technical notes and usage guidelines
Unique License Key for proof of purchase
Lifetime updates and dedicated support
License: Purchase grants rights for personal and commercial use in your own projects. Redistribution or sharing of the model or License Key is strictly prohibited.
