ESP32 – Precision 3D CAD Model for Fitment Testing
Description: This dimensionally accurate 3D CAD model of the ESP32 microcontroller is designed for precise fitment and enclosure testing in electronics, IoT devices, and prototyping projects. Created with engineering precision, it ensures designers and engineers can validate component placement before committing to physical production.
Key Features:
Engineering-grade accuracy – Dimensions verified against the official datasheet and physical measurements (tolerance <0.3 mm).
Optimized for fitment testing – Perfect for PCB enclosure design, case prototyping, and integration into mechanical assemblies.

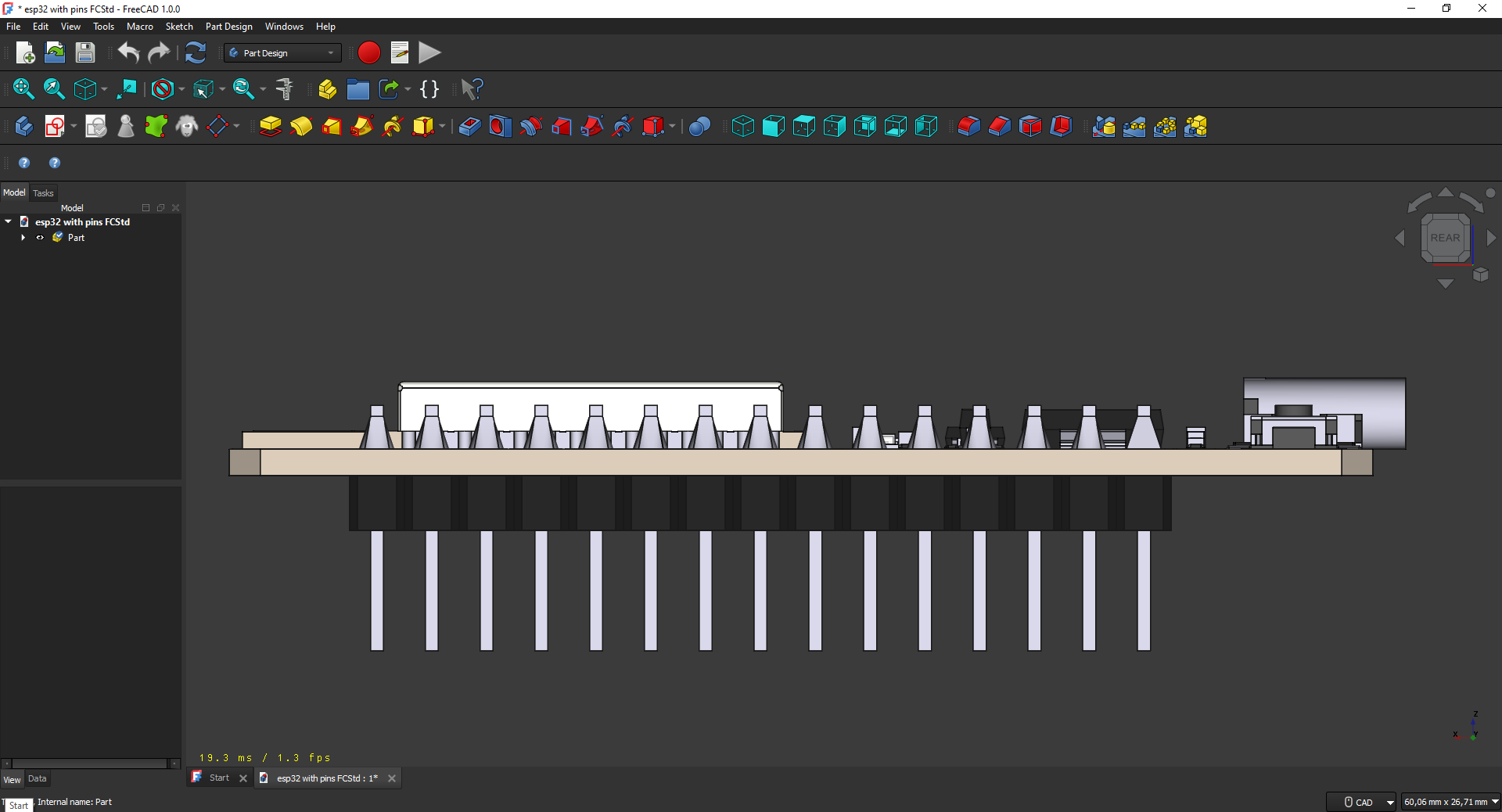

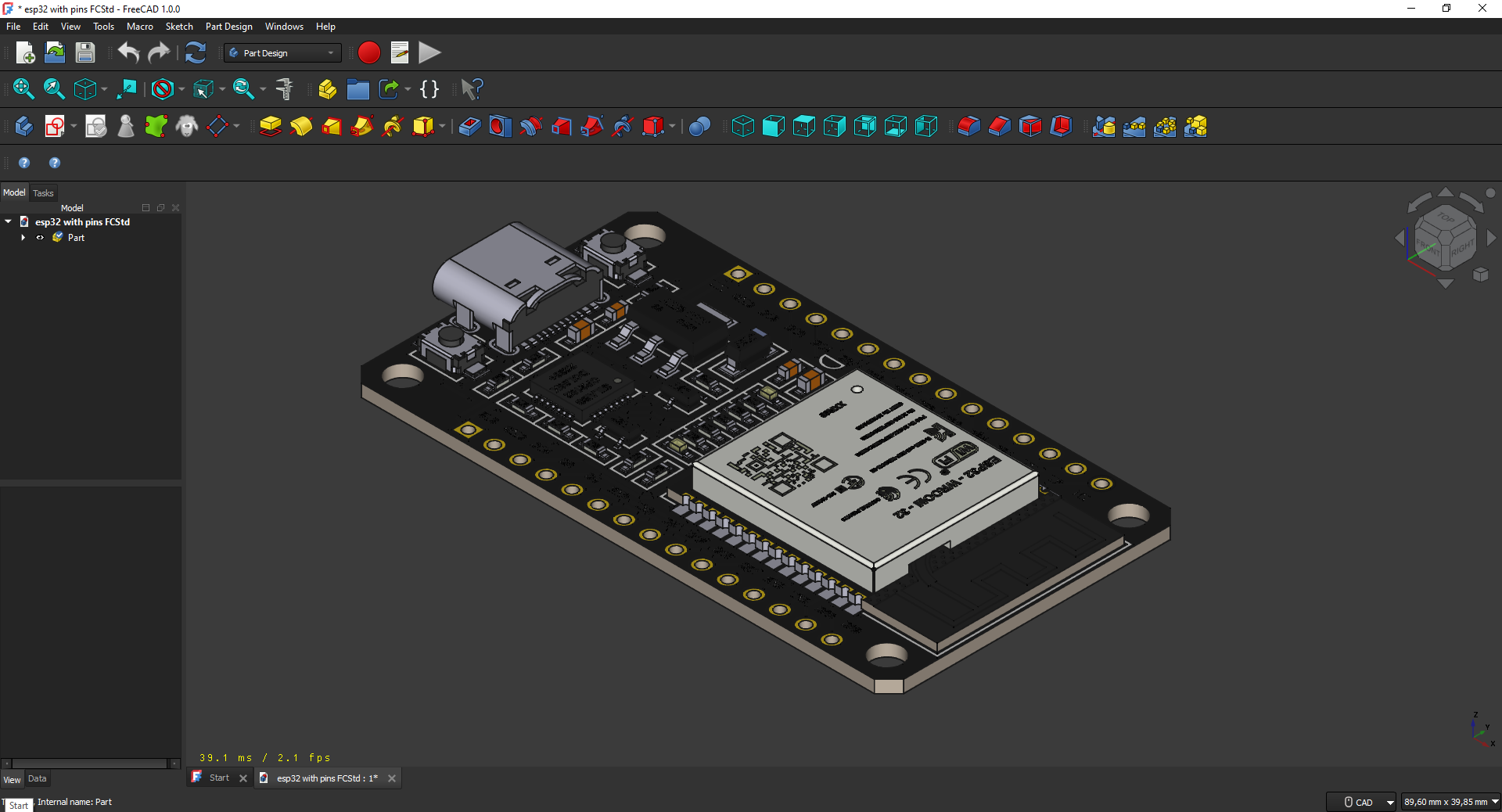

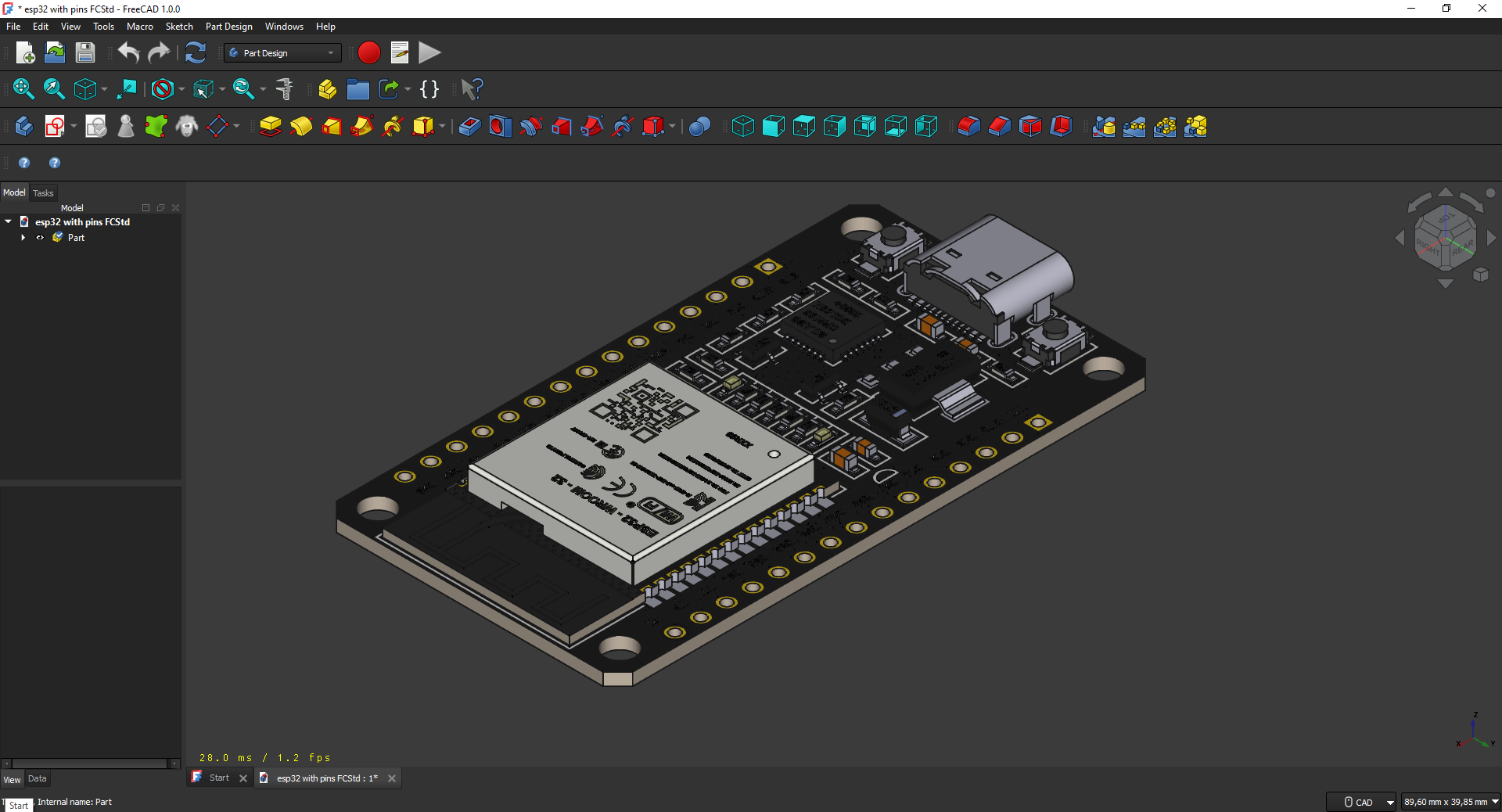

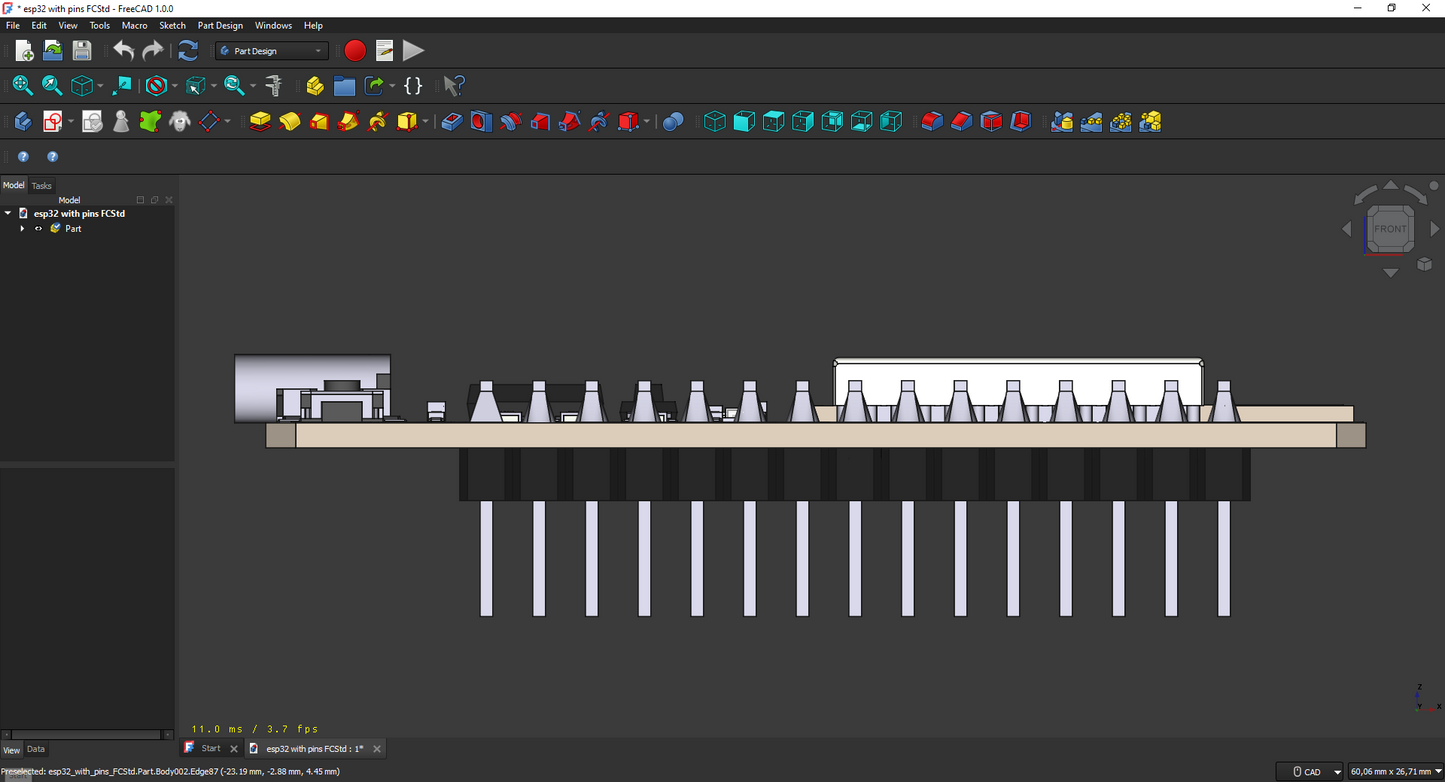

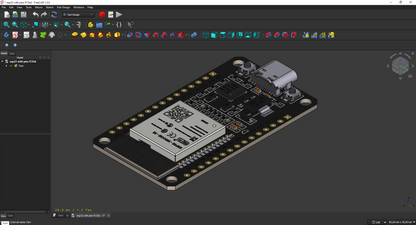

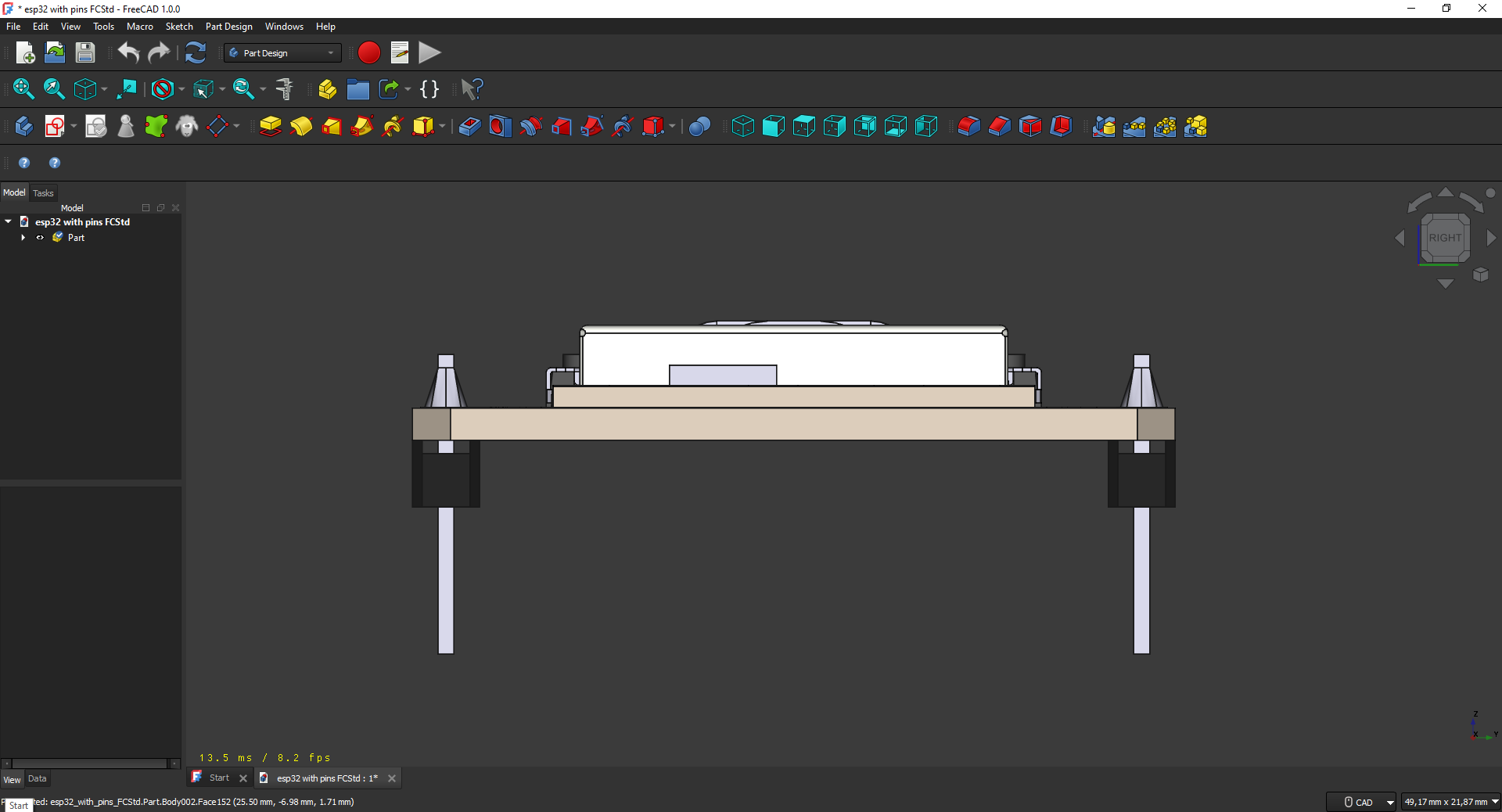

Multiple formats included – .FCStd, .gltf, .STEP, .IGES, .STL, .OBJ (Wavefront) for maximum CAD compatibility.

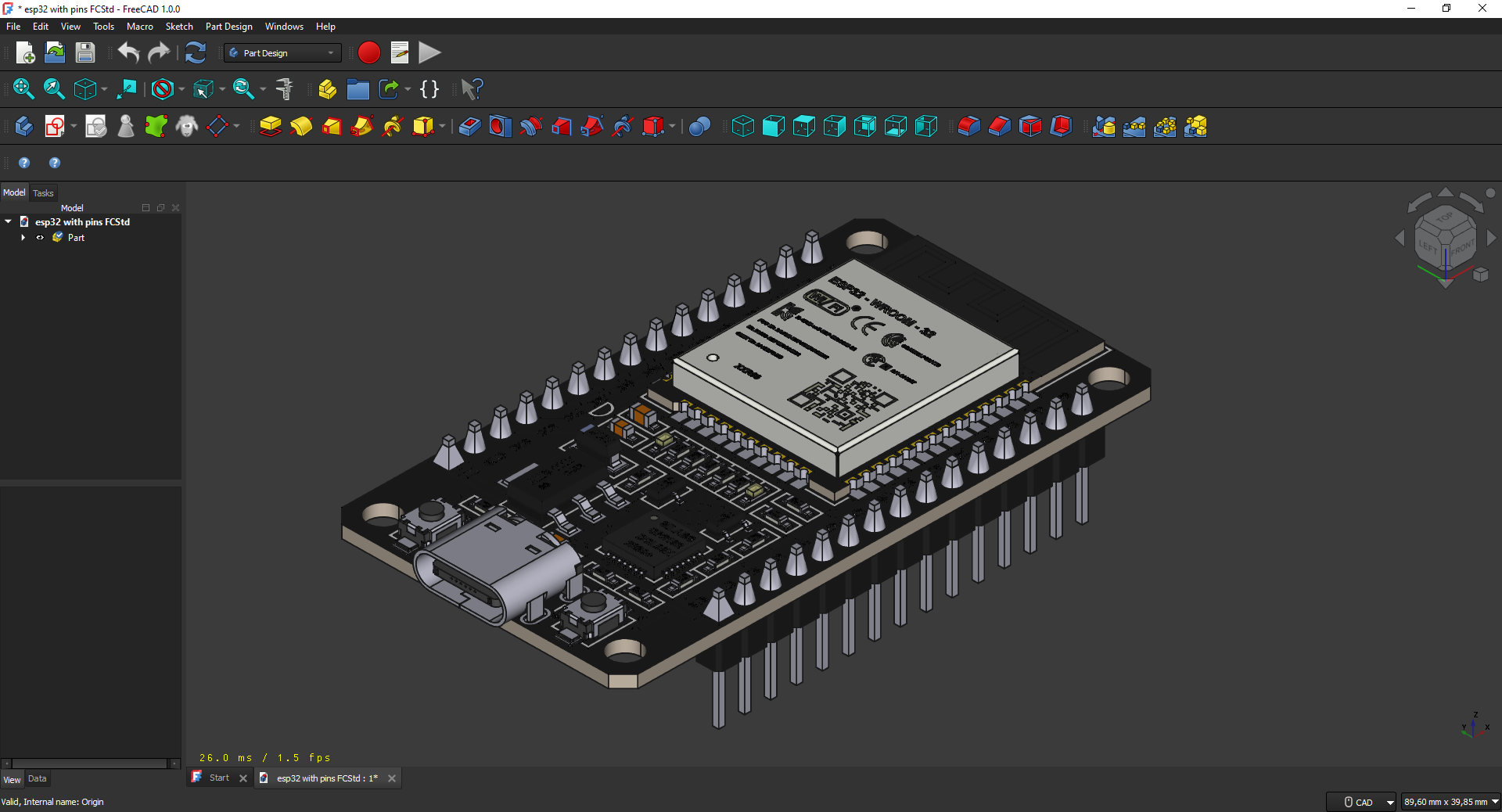

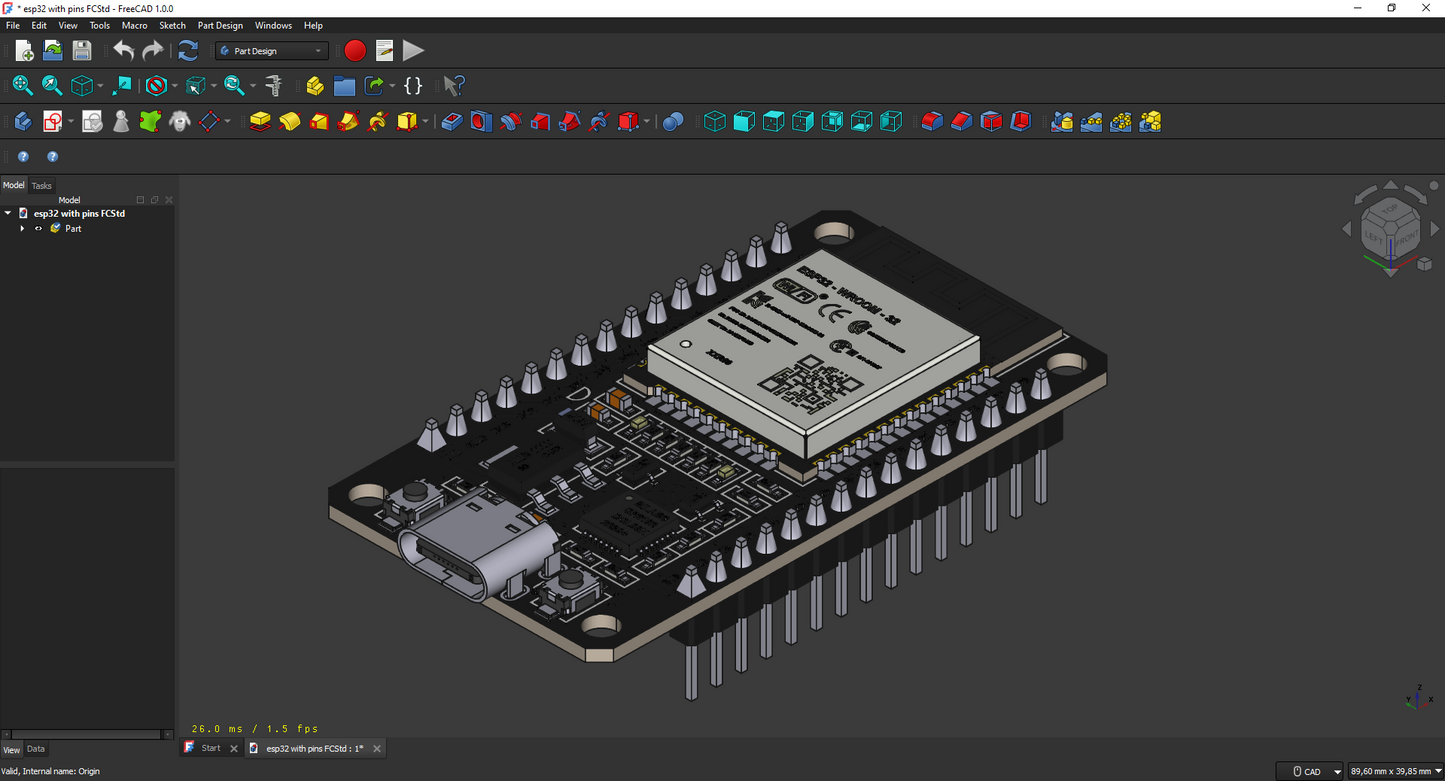

Cross-platform tested – Compatible with FreeCAD, Fusion 360, SolidWorks, and other major CAD programs.
Clean geometry – Efficient modeling without unnecessary complexity, ensuring smooth performance in large assemblies.
Format & Feature Availability:
Local Coordinate System (LCS): Available in .FCStd and .gltf formats only.
Colors: Available in .FCStd and .STEP formats only.
Transparency: Available in .FCStd format only.
Best Visual Quality: Model looks best in .FCStd format due to full material, color, and transparency support.
Applications: ✔ Enclosure and housing design ✔ PCB and component placement testing ✔ IoT and electronics product prototyping ✔ Visual presentations and project documentation
Package Includes:
ESP32 CAD model in .FCStd, .gltf, .STEP, .IGES, .STL, .OBJ formats
README file with technical notes and usage guidelines
Unique License Key for proof of purchase
Lifetime updates and dedicated support
License: Purchase grants rights for personal and commercial use in your own projects. Redistribution or sharing of the model or License Key is strictly prohibited.
